Blood vessel model

Our products are suitable for the trainings of resection, anastomosis, stent insertion to aneurysms etc. Quite different from traditional rubber and silicon models, our products are made from PVA (polyvinyl alcohol). They are moderate hydrophilic, rich flexible and therefor very similar to human body. You can experience realistic procedure practice through our various types of models.
Patent Numbers: 4790055(JP) 4841663(JP)

Products

  • Blood vessel model for anastomosis training (1-layer model)
    Blood vessel model 1-layer type, for anastomosis training

    This is specially processed to raise the moisture content, therefor very near to human body.
    Outer dia. 0.5mm/0.7mm/1.0mm/1.5mm/2.0mm/3.0mm/4.0mm/10mm
    Length : 50mm for outer dia. 0.5mm/0.7mm and 60mm for other types

  • プラーク付疑似血管
    Blood vessel model with artificial plaque

    Artificial plaque is attached inside. Plaque can be detached by dissector. Inserting intravenous shunt and suturing  hemashield patch can be also performed. This is suitable for CEA and high-flow bypass training.
    Outer dia. 8.0mm (Length 90mm)

  • 耐圧用疑似血管
    Blood vessel model pressure resistant type

    Thick-wall type. Simulated blood can be poured into. This is suitable for IVUS (intravenous ultrasound sonography), catheter and stent practices. Artificial plaque type is also available.
    Outer dia. 5.0mm/8.0mm (Length 80mm)

  • Academy pack containing 10 blood vessel models for anastomosis training (1-layer model)
    Academy Pack, containing 5 pcs of Blood vessel model 1-layer type

    Specially processed to raise the moisture content as above mentioned . This is a special package prepared for medical students, residents and surgeons for improving their surgery technique.
    Outer dia. : 0.5mm/0.7mm/1.0mm/1.5mm/2.0mm/3.0mm/4.0mm
    Length : 50mm (approx.) for outer dia. 0.5mm/0.7mm and 60mm (approx.) for other types

  • Blood vessel model for anastomosis (2-layer model)
    Blood vessel model 2-layer type, for anastomosis training

    This is specially processed to raise the moisture content. Adventitia is attached to “Blood vessel model 1-layer type”. Detaching adventitia and pinching by forceps can be experienced just like as the genuine.
    Outer dia. 1.0mm / 1.5mm / 2.0mm (Length 60mm)

  • Blood vessel model transparent type
    Blood vessel model transparent type

    Inside of blood vessel can be seen. This is suitable for practicing stent insertion.
    Outer dia. 5.0mm / 8.0mm / 10.0mm (Length 80mm)

  • Blood vessel model transparent type with plaque

    Artificial plaque is attached inside of “Blood vessel model pressure resistant type”. plaque can be detached by dissector. Inserting intravenous shunt and suturing hemashield patch can be also performed . This is suitable for CEA and high-flow bypass training. .
    Outer dia.  7.0mm   (Length 80mm)



  • 吻合用疑似血管キット
    Blood vessel kit for anastomosis training

    Blood vessel kit for anastomosis training
    This kit enables you to practice blood vessel manipulation in realistic by working on specialized sheets. You can check the suturing condition by flushing blood-like fluid with an injection. This kit can be also used with the separately sold blood vessel for anastomosis training.

  • Brain surface petri dish (blood vessel base)
    Brain surface petri dish (blood vessel base)

    Petri dish with a special brain surface sheet for practicing anastomosis. You can experience more realistic practice. It can also be used by neurosurgeons as a vascular base for the anastomosis training kit (sold separately).

  • 顕微鏡用横型骨台座
    Horizontal bone base for microscope

    By adjusting the height, it can be used as a base for deep anastomosis training.

Features

* Elasticity same as living human body, high tensile strength and surface is sticky.

*Realistic sense of suture and cutting can be experienced. Up to now, such  sense could not be experienced except by animal body.

*Suitable for procedure practice for Neurosurgery, Vascular surgery, Orthopedics, Dermatology and simulated experience for Microscopic surgery is available.

*Institutes and medical devices makers are using our products.



Gallery

  • Bifurcation model
    Bifurcation model
  • Provided by Dr. Jun Takahashi, Department of Neurosurgery, Kyoto University
    Provided by Dr. Jun Takahashi, Department of Neurosurgery, Kyoto University
  • Practicing peeling off the thin film around the blood vessels that can be burnt with electric scalpel
    Practicing peeling off the thin film around the blood vessels that can be burnt with electric scalpel
  • Brain surface petri dish (blood vessel base) in Horizontal bone base for microscope
    Brain surface petri dish (blood vessel base) in Horizontal bone base for microscope
  • Practicing peeling off the thin film around the blood vessels that can be burnt with electric scalpel
    Practicing peeling off the thin film around the blood vessels that can be burnt with electric scalpel

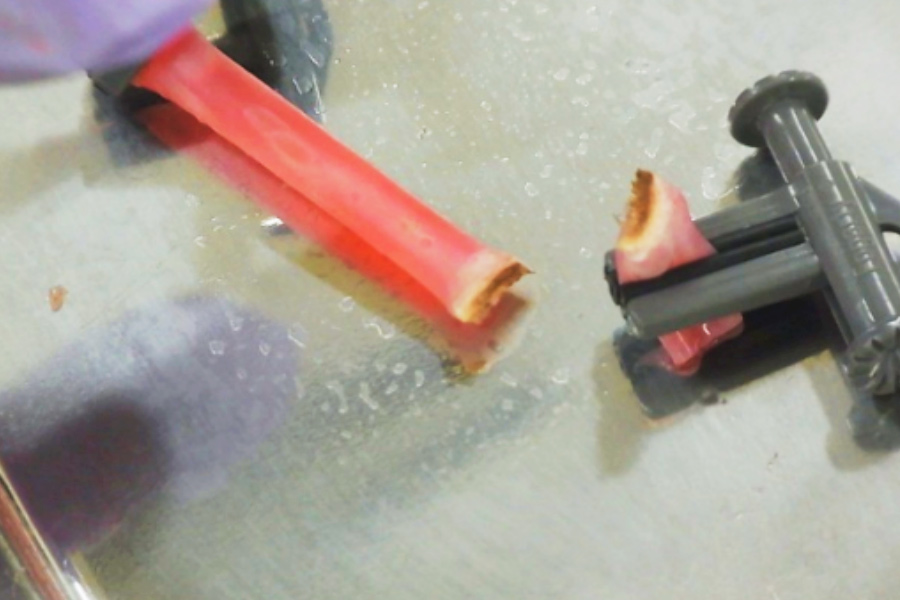

  • シーリング血管
